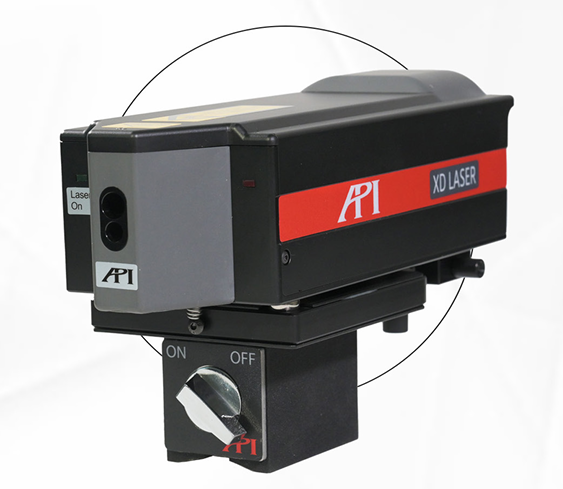

API XD Laser

API’s XD Laser is a multi-dimensional interferometer offering a high level of flexibility for machine-tool calibration, and the only tool that provides 6DoF measurement data for all axis errors in a single setup. It delivers rapid machine-tool error assessment by evaluating velocity, acceleration, parallelism, squareness, flatness, straightness, and linear, angular, and roll errors, cutting machine downtime by up to 80% compared to conventional interferometers. Wireless and available in 1, 3, 5, and 6 Degree of Freedom configurations, it features a compact design with the control box integrated into the laser head for easy setup and portability. Included software handles control, data acquisition, and reporting as standard, with optional linear and volumetric error compensation for even greater accuracy.
